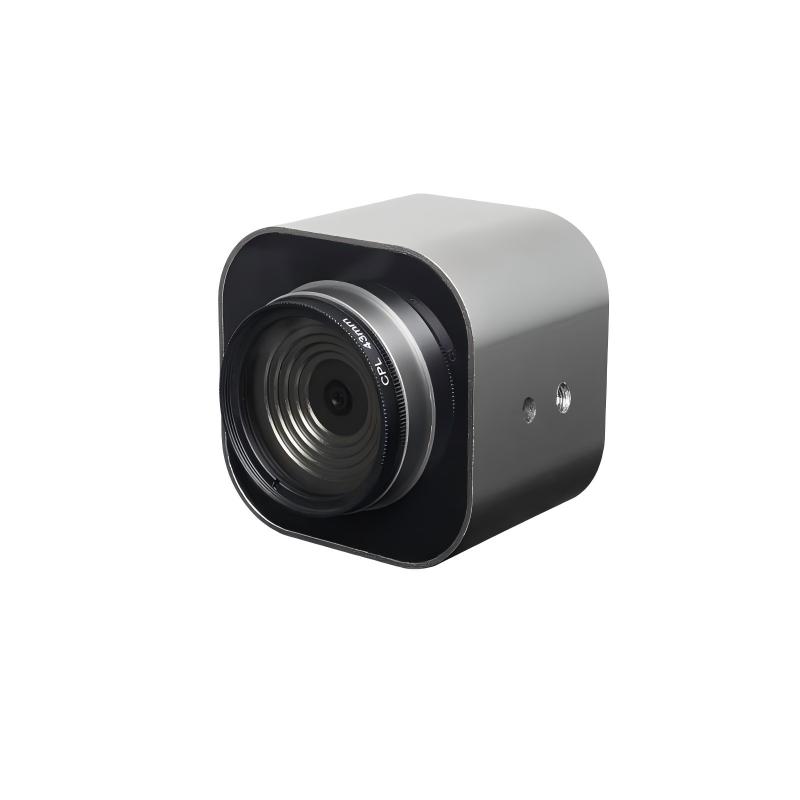

H288 Ultra Live Streaming Camera
Discover the H288 48MP Live Streaming Camera featuring a SONY industrial CMOS sensor, 6-glass coated lens, autofocus, and 90° vertical mount. Perfect for live sales, Zoom video conferences, and online teaching. Plug & play via Type-C.
Key Highlights
- 48 mega pixels
- 3D noise reduction
- Automatic white balance
- 6-glass coated lens
- Supported transverse Vertical mounting
Overview & Technical Details
Design, key features, typical applications, and core specifications.
Product Overview
Transform your broadcast quality and elevate viewer engagement with the H288 48MP Ultra Live Streaming Camera. Engineered with a premium SONY industrial CMOS sensor and a high-precision 6-glass coated optical lens, the H288 delivers ultra-high-definition image clarity, precise colors, and seamless video performance.
Whether you are hosting live e-commerce sales, streaming outdoor content, conducting executive video conferences, or recording online lectures, the H288 provides an enterprise-grade solution in a compact, durable aluminum alloy package.
Key Features OF Ultra Live Streaming Camera H288
48 Mega Pixel Ultra HD Resolution: Captures ultra-clear, highly detailed images with maximum sharpness and visual fidelity.
Sony Industrial CMOS Sensor & Advanced RGB SOC Chip: Combines hardware reliability with image processing algorithms for dynamic color accuracy and optimal frame rates.
Smart Autofocus & Picture Stabilization: Keeps subjects crisp, sharp, and clear during live movement and fast-paced presentations.
6-Glass Coated Optical Zoom Lens: Features a wide aperture and deep depth of field. Available with an optional 4.77mm non-distortion lens and 650±10nm IR filter for true-to-life visual fidelity.
3D Noise Reduction & Auto White Balance: Ensures clean, smooth video output in variable or low-light conditions.
Seamless 90° Horizontal & Vertical Mounting: Designed with dual mounting ports to easily rotate and switch between landscape (16:9) and portrait (9:16) live streaming formats.
Plug & Play Type-C Interface: Driver-free installation for instantaneous setup across PC, Mac, and streaming hardware.
Premium Aluminum Alloy Casing: Built with a sleek, durable, and lightweight metal body for improved heat dissipation and aesthetics.
Technical Specifications OF Ultra Live Streaming Camera H288
| photosensitive chip | CMOS 1/2.0″ |
| Pixel Size | 0.8μm x 0.8μm |
| SNR max | TBD dB |
| Max Dynamic range | TBD dB |
| Minimum illumination | 0.1Lux at F12 |
| F/No | 1.75 |
| EFL | 4.77mm |
| FOV | 80° |
| IR | 650±10nm |
| Lens Construction | 6E+IR |
| Maximum resolution and frame rate | 8000*6000(15fps) |
| Other optional resolution ratio | 4608*3456(10fps)、4000*3000(10fps) 3840*2160 (30fps)、2592*1944(15fps) 2048*1536(15fps)、 1280*720(30fps) 800*600(15fps)、640*480(15fps) |
| USB power supply voltage | 5V±5% |
| Connect the interface | USB-A to Type-c |
| Interface speed | 480mb/s |
| Operating system request | Windows XP/VISTA/Win7/Win8/ Win10/Linux 2.6.24 and. Ubuntu, Mac OS 10.6 and Android 5.1 |
| Power Consumption | Regular work : 3W |
| storage temperature | -20°Cto+70°C |
| working temperature | -10°Cto+65°C |
| Product structure size | (长)68mmx(宽)68mmx(高)63mm |
Multi-Scenario Applications OF Ultra Live Streaming Camera H288
E-Commerce & Live Streaming Sales
Showcase product textures, fine details, and true colors with 48MP resolution. Switch effortlessly to vertical screen mode for mobile-first platforms like TikTok, Instagram Reels, and Amazon Live.
Video Conferencing & Remote Business
Deliver crisp, ghost-free video quality during Zoom, Teams, or Skype business meetings. Advanced auto white balance ensures professional presentation even in ambient office lighting.
Education & Remote Classroom Recording
Record crisp lectures, whiteboard demonstrations, and detailed training sessions with wide depth of field and non-distortion optics.
Outdoor & On-the-Go Broadcasting
The compact size and rugged aluminum alloy shell make the H288 durable and portable for outdoor mobile streaming setups.

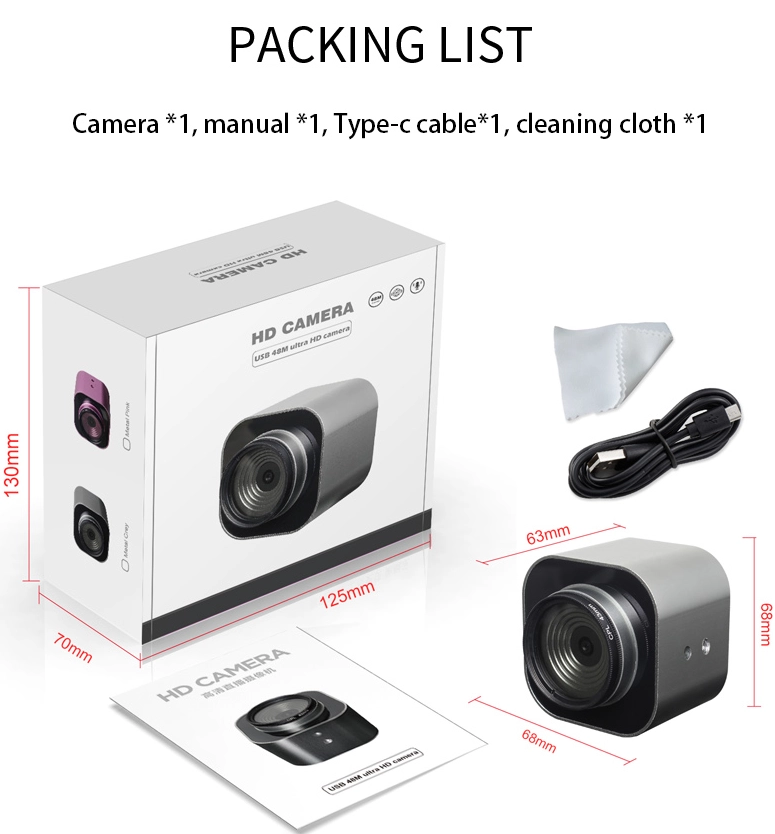

What’s in the Box?
1× H288 48MP Ultra Live Camera
1× USB Type-C Cable
1× Quick Start Guide
1× Ceaning Cloth
