HK48M-H288-3 48MP USB camera module
Designed for seamless integration, the module features a UVC driver-free, plug-and-play USB 2.0 interface, supporting dynamic cross-platform compatibility across Windows, Linux, Ubuntu, Android, and Raspberry Pi ecosystems.
Key Highlights
- 3D noise reduction
- Automatic exposure
- Picture stabilization
- 80° wide field of view
- TYPE-C Interface
- Industrial grade master chip
Overview & Technical Details
Design, key features, typical applications, and core specifications.
Product Overview

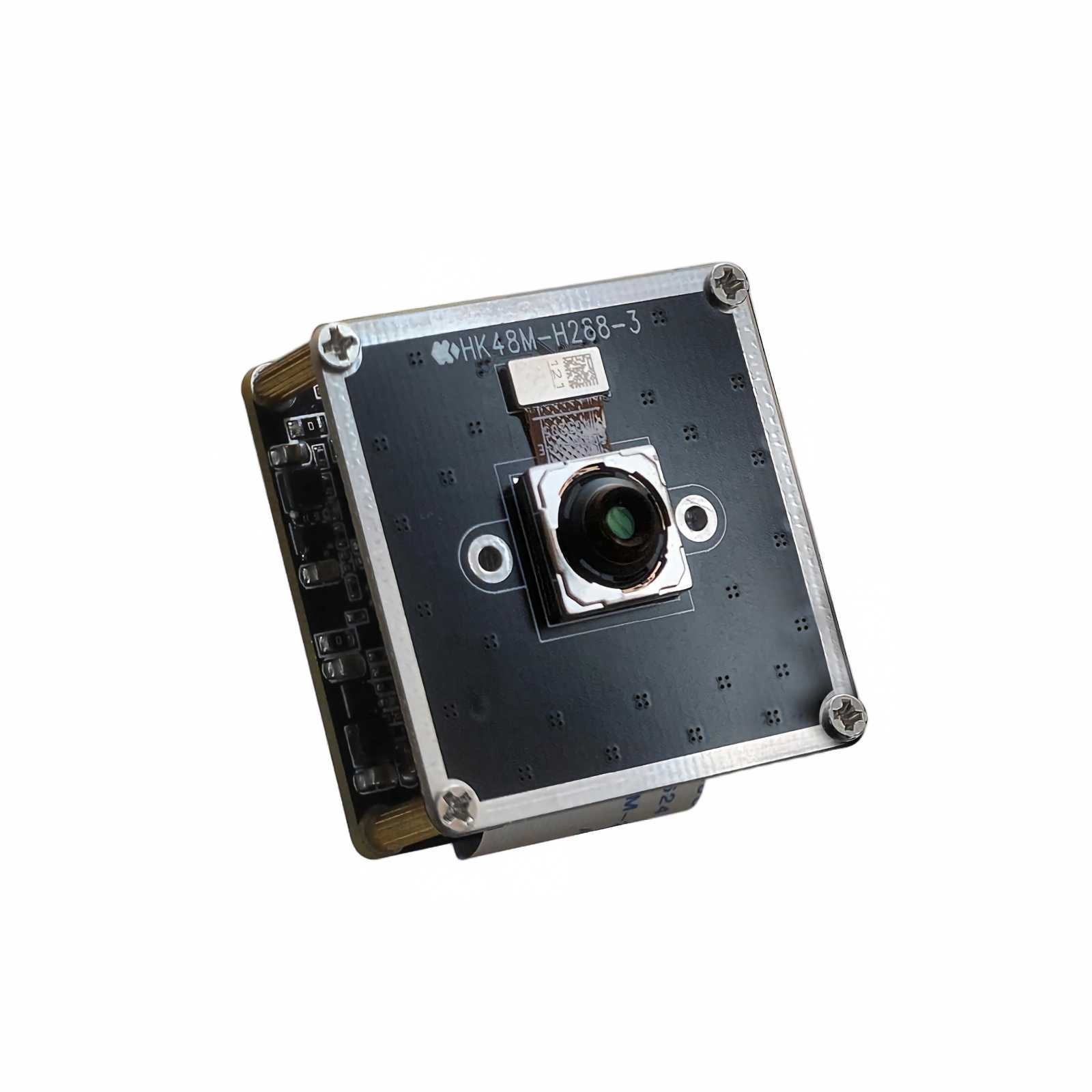

The HK48M-H288-3 is an industrial-grade 48MP Ultra HD USB camera module engineered for high-precision imaging applications. Powered by a 1/2” CMOS image sensor, advanced Autofocus (AF), and 3D Noise Reduction (3DNR) technology, this compact camera module delivers high-resolution visual clarity for medical equipment, interactive video conferencing, high-resolution document scanners, and industrial automation terminals.
Key Features & Highlights OF 48MP USB camera module-HK-H288-3
48 Megapixel Ultra High Definition: Captures fine visual details with up to 48MP resolution, ideal for detailed documentation, inspection, and high-clarity live streaming.
1/2” CMOS Sensor & Advanced Optics: Features a 1/2-inch photosensitive chip paired with a 6-layer glass coated lens (4.77mm focal length with IR filter at 650±10nm to ensure high optical clarity, auto-exposure, and accurate color rendition.
Autofocus & 3D Noise Reduction: Intelligent AF combined with dynamic 3DNR algorithm effectively minimizes image noise in low-light environments and preserves crisp subject focus.
80° Wide Field of View (FOV): Provides an expansive 80° optical viewing angle, perfect for wide-angle desktop video capture and multi-participant conference displays.
Industrial-Grade Reliability: Built using a durable rigid-flex board design and premium mainboard chipset. Thermal tested to operate stably from -10°C to +70°C
Driver-Free Plug & Play: Standard USB 2.0 / Type-C connectivity using Universal Video Class (UVC) protocol for instant deployment on multiple operating systems

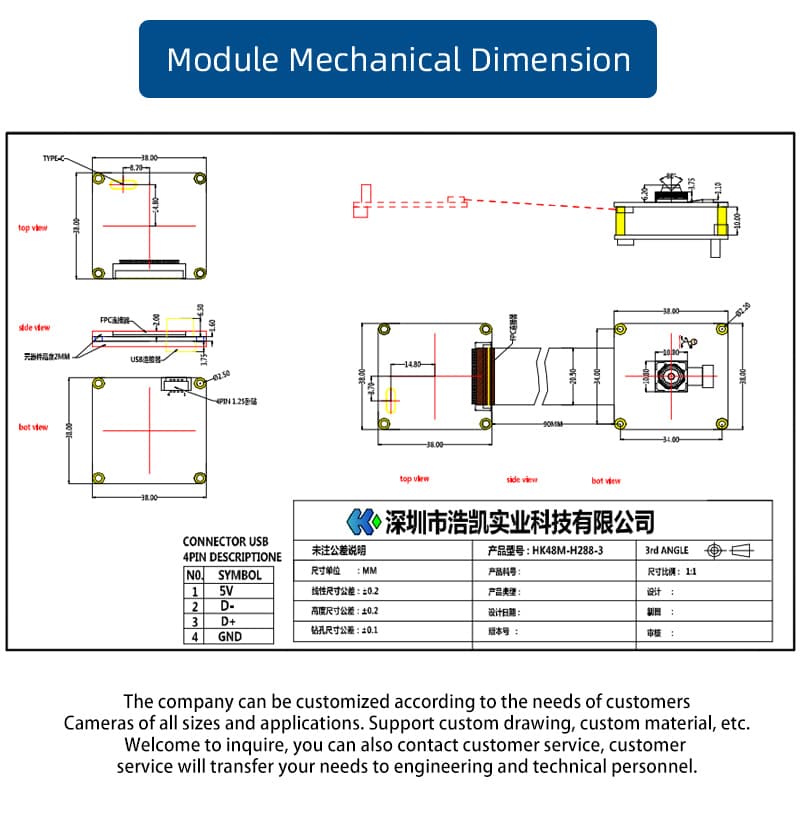

Compact Form Factor: Measuring 38mm × 38mm, its standard footprint easily fits into tight spaces within self-service hardware, medical devices, and custom enclosures.
Technical Specifications OF USB camera module-HK-H288-3
| photosensitive chip | CMOS 1/2.0″ |
| Pixel Size | 0.8μm x 0.8μm |
| SNR max | TBD dB |
| Max Dynamic range | TBD dB |
| Minimum illumination | 0.1Lux at F12 |
| F/No | 1.75 |
| EFL | 4.77mm |
| FOV | 80° |
| IR | 650±10nm |
| Lens Construction | 6E+IR |
| Maximum resolution and frame rate | 8000*6000(15fps) |
| Other optional resolution ratio | 4608*3456(10fps)、4000*3000(10fps) 3840*2160 (30fps)、2592*1944(15fps) 2048*1536(15fps)、 1280*720(30fps) 800*600(15fps)、640*480(15fps) |
| USB power supply voltage | 5V±5% |
| Connect the interface | USB-4pin-1.25mm |
| Interface speed | 480mb/s |
| Operating system request | Windows XP/VISTA/Win7/Win8/ Win10/Linux 2.6.24 and. Ubuntu, Mac OS 10.6 and Android 5.1 |
| Power Consumption | Regular work : 3W |
| storage temperature | -20°Cto+70°C |
| working temperature | -10°Cto+70°C |
Target Applications OF 48MP USB camera module-HK-H288-3
The HK48M-H288-3 OEM camera module is designed for versatile deployment across diverse commercial and industrial setups:
Medical & Aesthetic Equipment: High-precision skin analysis tools, digital diagnostic instruments, and medical imaging units.
Large-Screen Meeting & Teleconference Systems: High-definition video inputs for interactive whiteboards, smart displays, and corporate conferencing hubs.
Self-Service Terminals & Vending Machines: Facial recognition, user interaction, and identity verification in smart kiosks, ATMs, and vending systems.
High Camera Scanners & Document Digitization: Overhead document capture, fine detail archiving, and OCR scanning systems.
Industrial Automation & Robotics: Machine vision inputs for inspection systems, embedded robotics, and industrial control equipment.
Live Streaming & Broadcasting: Desktop high-resolution streaming feeds for education, e-commerce, and content creation.
