Integrated Audiovisual Front-End Module
HK-M80DC 8-Mic Array & 12MP Camera Module for AI Digital Human
An industrial-grade, driver-free USB audiovisual module engineered for next-generation HCI. Combines an 8-mic broadside linear array with onboard AI DSP noise suppression and a 12MP autofocus camera for crystal-clear voice and video in noisy kiosk and digital human environments.
12 MP
4000×3000 Full HD autofocus camera
45°
Up and down rotatable viewing angle
Type-C
Plug-and-play USB Audio Class 1.0

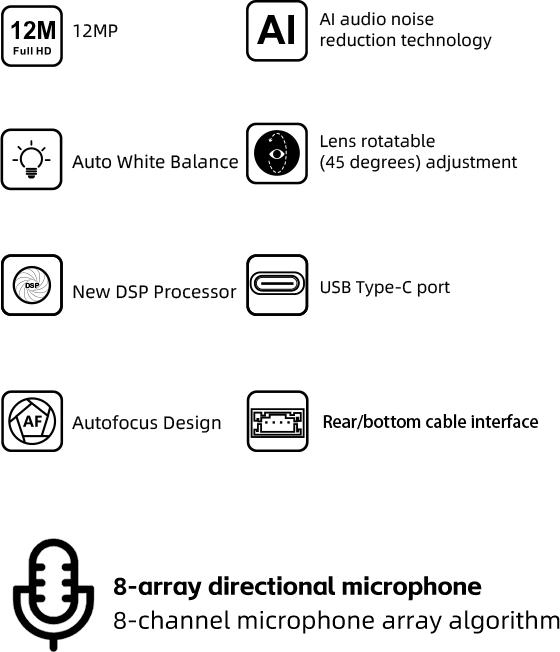

Product Overview
Integrated AI Voice & Video Front-End Module for Digital Humans & Kiosks
The HK-M80DC integrates an 8-channel microphone array algorithm board with a 12-megapixel autofocus lens to capture crystal-clear sound and image for intelligent terminals and large screens.
- 60° narrow-angle directional sound pickup (up to 3m best range)
- 12MP Full HD resolution (4000*3000@15fps, 1080P@60fps)
- Vertical viewing angle adjustability within 45° range
- Dual outgoing cable layout (rear/bottom) with AEC speaker interface

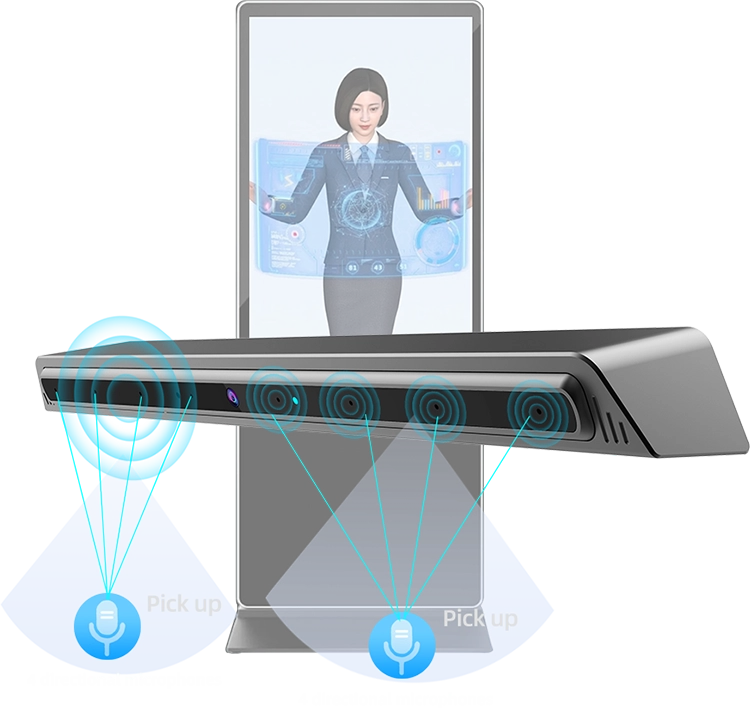

HK-M80DC 8-Mic Broadside Array with Onboard AI Hardware DSP
Utilizes hyperdirectional microphones to capture voice accurately within a 60° pickup angle while suppressing noise from other directions. Integrated with DNN, AGC, AEC, AES, and ASR algorithm technologies for rapid AI interaction.
Ideal for AI digital human interaction, intelligent customer service, digital employees, OLED transparent screens, and indoor recording applications.
Optical Performance

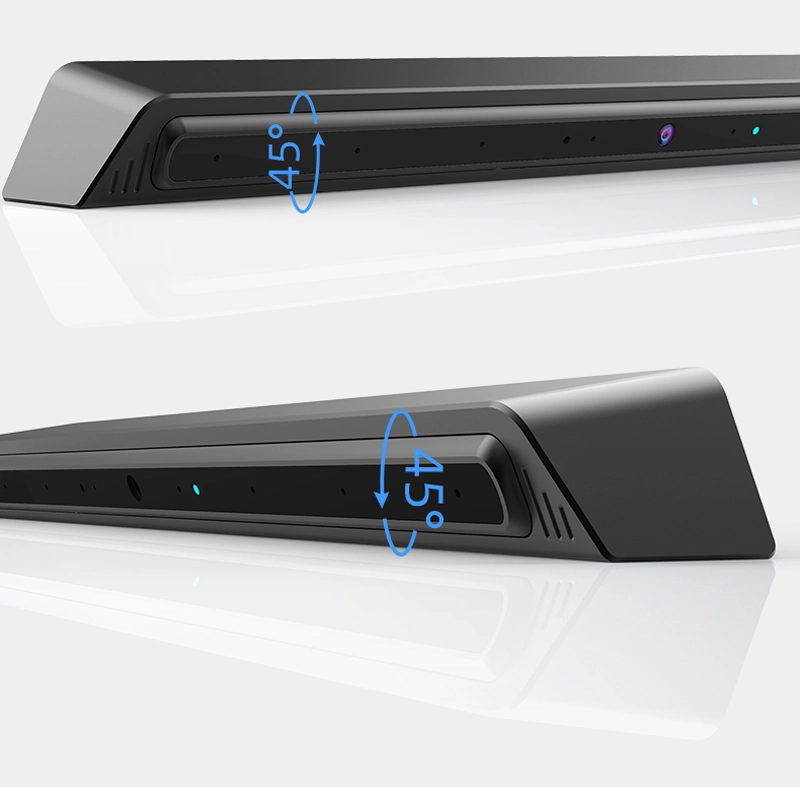

12MP Full HD Autofocus Camera with 45° Tilt Adjustment
Features a 1/2.5″ CMOS sensor and 6P+IR lens delivering up to 4000*3000 high-definition resolution. The 72° wide-angle lens with 45° vertical adjustment range allows seamless installation on screens of varying heights.
- 4000*3000 @ 15fps & 1080P @ 60fps video capture
- Auto White Balance & Automatic Focus (AF) design
- 6-layer coated lens for high video clarity and smoothness
- F1.8 large aperture for superior low-light performance (0.1 Lux)

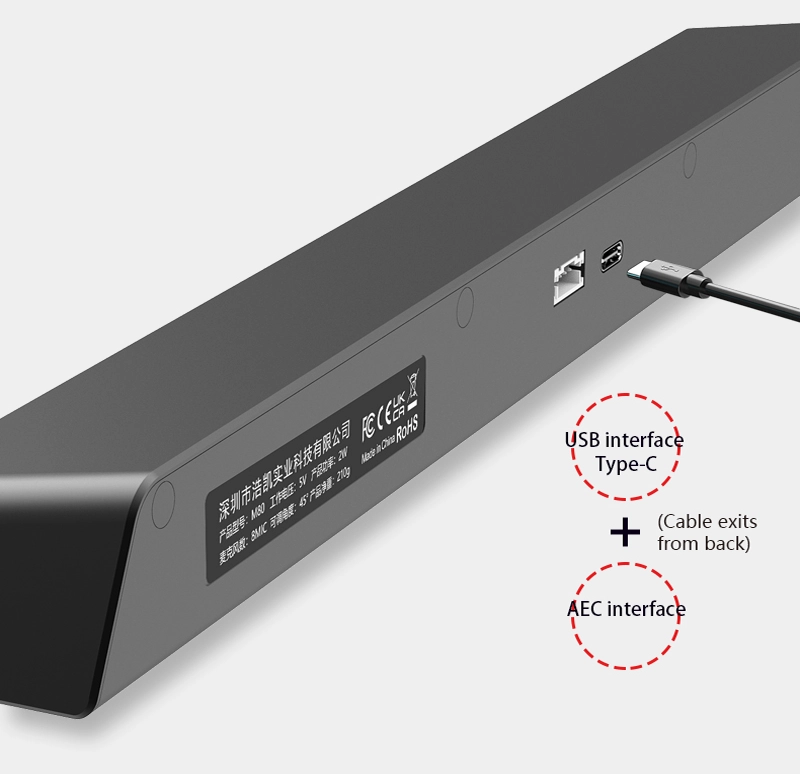

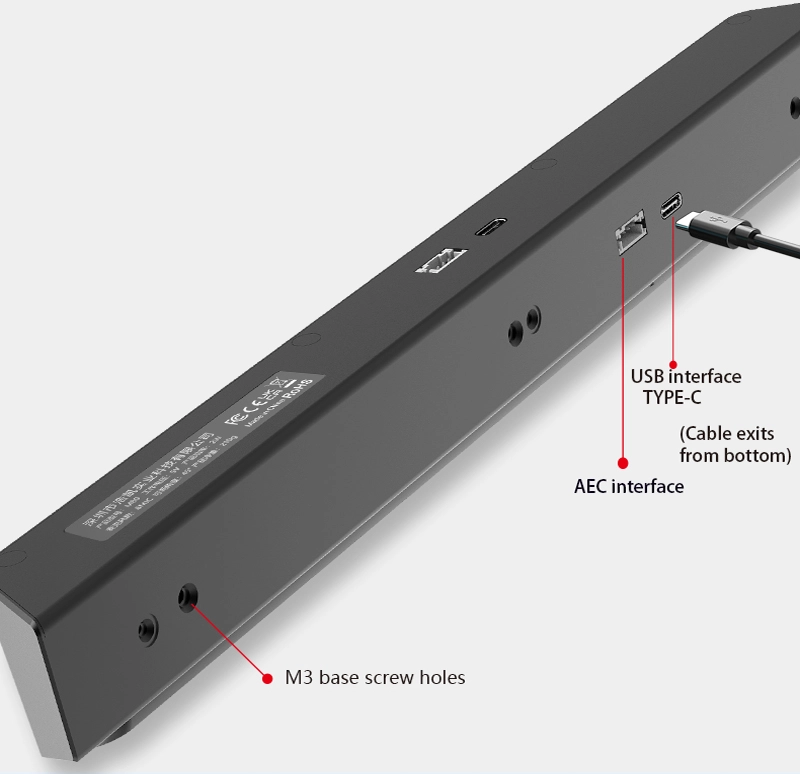

Rear and bottom outgoing cable interface design
Flexible installation options support cable exit from either the rear or bottom. Built-in USB Type-C interface requires no driver download for immediate connection, while the AEC interface supports external speakers.
Includes bottom M3 base screw holes for secure mounting on digital humans, display screens, and kiosk housings.

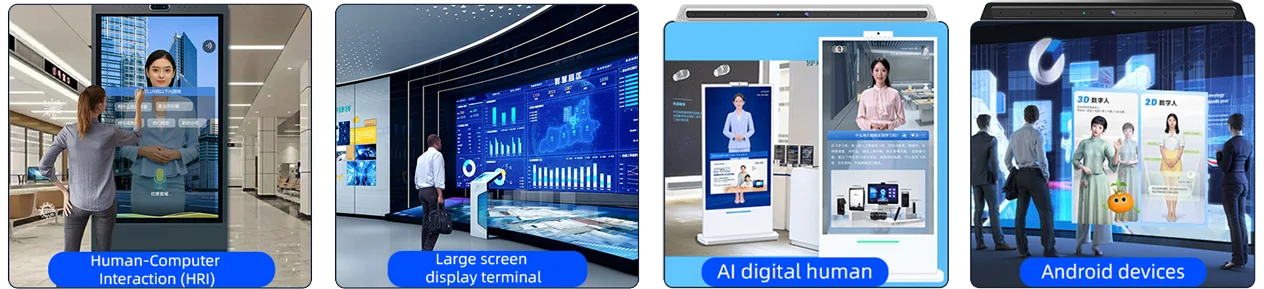

Applications
Designed for next-generation HCI & AI voice interaction
Out-of-the-box solution for AI digital humans, human-computer interaction (HRI), video conferencing, educational screens, hospitals, malls, banks, and Android display terminals.

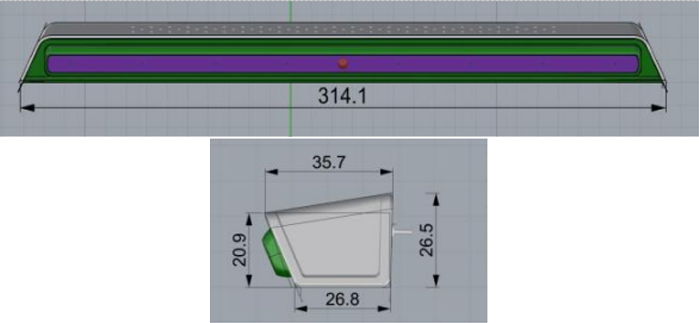

Module Mechanical Dimensions
Total length: 314.1 mm, width: 35.7 mm, height: 26.5 mm. Net product weight: 210g. Features standard USB Type-C connectivity and M3 base mounting screw holes for easy structural integration.
Product Specifications
The following parameters are compiled directly from Shenzhen Haokai Industrial Technology specifications.
Microphone Specifications
| Microphone type | Linear equidistant directional pickup array microphone |
| Microphone Quantity | 8 MIC |
| The farthest pick-up distance | Best within 3 meters |
| Audio capture rate | 48K @ 16bit |
| Supports protocol | UAC 1.0 |
| Sensitivity / SNR | -26 ± 1 dB / 65 dB(A) |
| AOP / ND | External noise suppression >= 12 dB SPL / >= 20 dB |
| Directivity | 60° (two-way pickup / directional) |
| Supporting functions | Auto echo cancellation (AEC), Voice enhanced, Beam-forming, Directional pick up sound, Noise Suppression, Automatic Gain Control (AGC) |
| Hardware features | 60° directional pickup, USB Audio Class 1.0, AEC interface for external speakers, 8-channel array algorithm, HUB camera connection support |
| Connect interface / Voltage | 1 × USB Type-C / 5V ± 5% |
| Power Consumption | Regular work: 2W |
| Structure size | 314.1 mm (L) × 35.7 mm (W) × 26.5 mm (H), 210g |
Camera Specifications
| Photosensitive chip size | CMOS 1/2.5″ (Pixel size 1.4µm × 1.4µm) |
| Minimum illumination / F/No | 0.1 Lux at F12 / F1.8 ± 5% |
| EFL / FOV | 4.74 mm / 72° wide angle |
| IR filter / Lens construction | 650IR / 6P + IR |
| Max resolution & frame rate | 4000 * 3000 @ 15fps (12 Megapixels) |
| Other optional resolutions | 1920*1080@60fps, 3840*2160@30fps, 2592*1944@30fps, 1280*720@30fps |
| Support format / Speed | YUV / MJPG / 480Mb/s USB Type-C |
| Operating system request | Windows XP/Vista/Win7/Win8/Win10, Linux 2.6.24+, Ubuntu, Mac OS 10.6+, Android 5.1+ |
| Working temperature | -10°C to +60°C (Storage: -20°C to +70°C) |
Need selection or integration support?
Contact Shenzhen Haokai Industrial Technology Co., Ltd. for custom modules, interface documentation, samples, and technical support.
