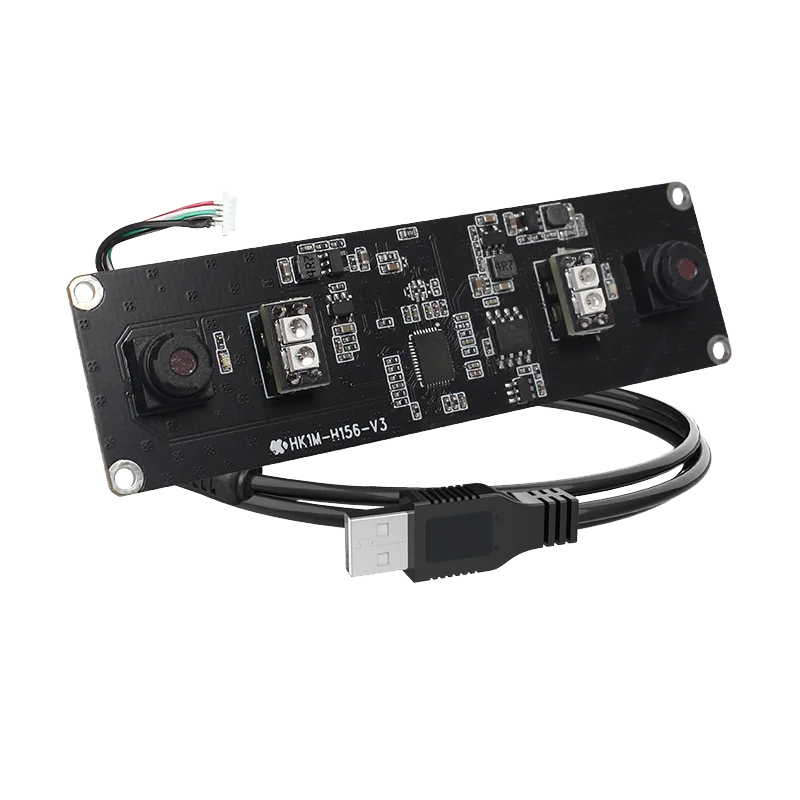

HK1M-H156 Dual-Lens Biometric USB Camera Module (720P HD)
The HK1M-H156-V3 is an industrial-grade USB 2.0 dual-lens camera module engineered for high-accuracy biometric authentication and vision systems. Featuring a synchronized 2560×720 HD resolution, integrated 850nm IR illumination, and global exposure capability, it provides fast, distortion-free imaging for indoor and outdoor identity verification.
Key Highlights
- Biometric Dual Optics: Optimized for concurrent live-face capture, liveness detection, and iris recognition.
- Global Shutter Performance: Eliminates motion blur and rolling-shutter distortion during high-speed imaging.
- Drive-Free UVC Integration: Plug-and-play setup across Windows, Linux, Android, and Raspberry Pi.
- Industrial Temperature Range: Designed with enterprise-grade components operating reliably from -10°C to +60°C.
Overview & Technical Details
Design, key features, typical applications, and core specifications.
Product Overview & Technical Architecture
The HAOKAI HK1M-H156-V3 is a high-performance dual-lens biometric camera module tailored for automated access control, smart kiosks, and industrial machine vision. Built around a 1/4″ CMOS sensor with a 3.0µm × 3.0µm pixel architecture, this camera delivers exceptional sensitivity (0.1Lux @ F1.2) and dynamic stability under changing ambient lighting conditions.
Featuring dual synchronized optical sensors paired with 850nm narrowband infrared (IR) LEDs, the HK1M-H156-V3 captures visible and near-infrared light simultaneously. This dual-spectrum capability is crucial for high-security biometric liveness detection (anti-spoofing), enabling smart algorithms to distinguish between real human faces and high-resolution photo or video attacks.
Equipped with a precision 6-layer (5P+IR) coated glass lens delivering a 30° diagonal field of view (FOV), the module ensures minimal optical distortion while maintaining high center-to-edge sharpness. Its integrated UVC (USB Video Class) protocol allows instant deployment without additional driver installation, making it an ideal OEM vision component for developers using Android, Linux, or Windows-based systems.
Key Features & Advantages
Dual-Lens Biometric Precision: Purpose-built dual-camera architecture optimized for simultaneous live face detection and high-accuracy iris recognition.
Global Exposure & HD Clarity: Captures sharp 720P HD footage at 30fps without motion blur, ensuring crisp image stabilization for fast-moving targets.
6-Layer Optical Glass Lens: Features a premium 6-layer coated glass lens with an optional 5.0mm distortion-free focal length and 850±10nm IR filtering.
Universal Plug & Play: Drive-free USB 2.0 interface allows effortless, zero-driver setup across desktop, mobile (OTG), and embedded devices.
Industrial-Grade Durability: Powered by an industrial-class master chip rigorously tested to withstand extreme working temperatures up to 70°C.
Application Scenarios
Biometrics & Security Access: Iris recognition, live-face authentication, smart door locks, turnstiles, and security gates.
Identity & Commercial Verification: Witness identity comparison, ID photo capture, scan-code recognition, and unmanned vending kiosks.
Industrial & Inspection: Industrial testing, high-speed camera capture, medical equipment imaging, and drones/robotics.
Smart Display & Communication: Advertising machines, distance learning, and HD video conferencing/calls.
Specifications
| Photosensitive chip | CMOS 1/4“ |
| Pixel size | 3.0μm x 3.0μm |
| SNR max | TBD dB |
| Max dynamic range | TBD dB |
| Minimum illumination | 0.1Lux at F12 |
| F/NO | 2.4 |
| EFL | 5.0mm |
| FOV | D30°、H25、V17° |
| IR | 850±10nm |
| Lens construction | 5P+IR |
| Maximum resolution and frame rate | 2560*720 (30fps)、 |
| Other optional resolution ratio | 1280*480 (30fps), 640*240 (30fps) |
| Support format | YUV/MJPG |
| USB power supply voltage | 5V±5% |
| Connect the interface | 1*USB-GH1.25 |
| Interface speed | 480mb/s |
| Operating system request | Windows XP/ VISTA/ Win7/Win8/ Win10/Linux 2.6.24 and Ubuntu, Mac OS 10.6 and Android5.1 |
| Power Consumption | Regular work : 1W |
| Storage temperature | -20°C to+ 60°C |
| Working temperature | -10°C to+ 60°C |
| Structure size | (L)84mmx(W)25mmx(H)9.2mm |
